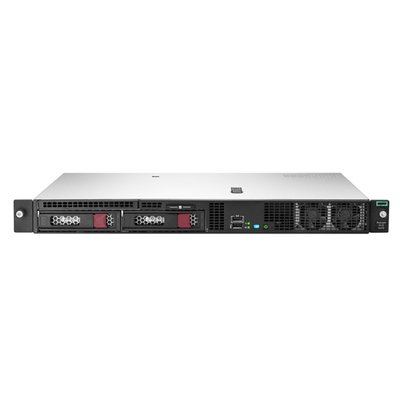

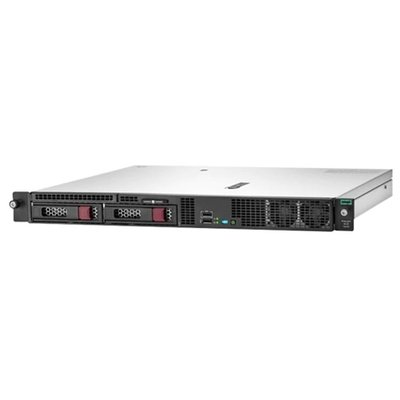

HPE Proliant Dl20 Gen10 CTO Server :

Description :

HPE P06961-B21 Proliant Dl20 Gen10 Cto Server, No Cpu, No Ram, 2 Lff 3.5inch Non-hot Plug Hdd Bays, 2x Gigabit Ethernet, 1x290w Ps, 1u Rack Server.

Processor / Chipset
max Cpu Qty: 1
chipset Type: Intel C621

Ram :
installed Size: 0 Gb / 64 Gb (max)
technology: DDR4 Sdram
form Factor: Dimm 288-pin

Storage Controller :
type: 1 X Raid
controller Interface Type: Sata 6gbps
storage Controller Name: Hpe Smart Array S100i Sr Software Raid
raid Level: Raid 0, Raid 1, Raid 5, Raid 10

Graphics Controller:
graphics Processor: Matrox G200
video Interfaces: Vga

Networking :
interface (bus) Type: PCI Express X2
Ethernet Ports: 2X Gigabit Ethernet
Ethernet Controller: HPE 332i
data Link Protocol: Ethernet, Fast Ethernet, Gigabit Ethernet
remote Management Controller: Integrated Lights-out 4
features: Wake On Lan (wol), Pxe Support
compliant Standards: Ieee 802.3, Ieee 802.3u, Ieee 802.3ab

Expansion / Connectivity :
Expansion Bays Total (free): 2 (total) / 2 (free) X Non-hot Plug 3.5inch Lff

Expansion Slots Total (free) :

4 (total) / 4 (free) X Dimm 288-pin
1 (total) / 1 (free) X Cpu
1 (total) / 1 (free) X Pcie 3.0 X16 – Three-quarter-length, Full-height
1 (total) / 1 (free) X Pcie 3.0 X8 – Low-profile
1 (total) / 1 (free) X Flexiblelom – Three-quarter-length, Full-height (low-profile) 1 (total) / 1 (free) X Microsd Card (internal)
1 (total) / 1 (free) X Pcie X16 – Full-height

interfaces & Ports :

1 X Vga
2 X Lan (gigabit Ethernet)
1 X Hp Ilo
1 X Management
5 X Usb 3.0 (2 Front, 2 Rear, 1 Internal)

Power :
device Type: Power Supply – Non Hot-plug
Power redundancy: Optional
power Redundancy Scheme: 1+1 (with Optional Power Supply)
installed Qty: 1
nominal Voltage: Ac 120/230 V (50/60 Hz)
power Provided: 290watt
80 Plus Certification: 80 Plus Silver
efficiency: 92%

Dimensions & Weight :
width: 17.1 In
depth: 15 In
height: 1.7 In
weight: 17.37 Lbs

Availability: In Stock.
